HDK-97ARRI: Super 35mm Format HDTV Camera System

HDK-97ARRI

HDK-97ARRI: Super 35mm Format HDTV Camera System

The HDK-97ARRI offers a unique convergence of attributes, designed with the latest innovations. The ARRI Large-format front end is famed for its film-like, organic look characterized by extended, clean highlights, an extremely low noise floor, natural skin tones, excellent color separation and cinematic depth-of field. Employing large pixels and a custom-designed read-out architecture , this critically acclaimed 35mm CMOS sensor demonstrates exceptional dynamic range. In addition, ARRI’s stainless steel lens mount system ensures super stable flange focal depth between lens and sensor.

Super 35mm CMOS Large Sensors

Employs Super 35mm CMOS Large Sensors. Thanks to the large pixel with 8.25μm size, this camera achieves wider dynamic range, high S/N and high sensitivity.

PL Lens Mount

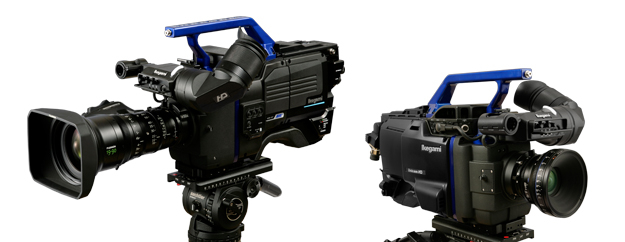

The lens mount is genuine ARRI PL lens mount providing excellent stability.

Dockable type camera head

Employs UnicamHD dockable interface　
Suitable adaptor :・3G　Fiber Adaptor FA-97A

Wide Dynamic Range, High S/N

Dual Gain Architecture provides superior dynamic range and high S/N respectively.

Standard B4 lens mountable

Standard B4 mount lens can be mounted with optional B4 mount converter.

Custom Gamma Correction

Custom Gamma EditorGamma curve created with PC can be transferred to the camera and it is variable from control panel.

Electrical ND Filters

1 x ND Filter　(OD 1.2) is controllable remotely from OCP.

System Concept

This camera can be combined with all UnicamHD camera system. Control can be made for all the cameras even HDK-97ARRI and other HDK cameras are used in the same camera chain.

Scanning System

1080p/59.94/29.97, 1080p/50/25, 1080i/59.94/50, 1080psf/29.97, 1080psf/25,1080p/23.98, 1080psf/23.98, 1080pd/23.98, 720p/59.94/50

Sensitivity

T11 at 2000 lx (1080p/29.97）

S/N Ratio

64dB (1080p/29.97）

Dynamic Range

1200%

Gain

Step Gain：-6, -3, 0, +3, +6, +9, +12dB
Variable：±6dB

Motorized ND filter

	1	2
ND	Clear	0D1.2(1/16)

Electrical Color Filters

	A	B	C	D	E
ECC	3200K	4300K	5600K	6300K	8000K

Electrical Shutter

1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000

Operating Voltage Range

-20℃ ~ +45℃

Ambient Temperature

Operating -20℃ ~ +45℃
Storage -30℃ ~ +60℃

Dimensions

W179 x H288 x D446 mm

Weight

9.0Kg (HDK-97ARRI+FA-97)

4K Converter Board

Slot in BS-98 and CCU-980: This board provides 4K output from a 2K source. It replaces the V OUT board of an Ikegami base station or camera control unit. Existing BS-98 or CCU-980 models can be upgraded without needing modification. A camera head is required to support the upscaling process.
