MLW-3110U　Type3D

MLW-3110U

31-inch Medical Grade UHD 3D LCD Monitor

Discontinued Product

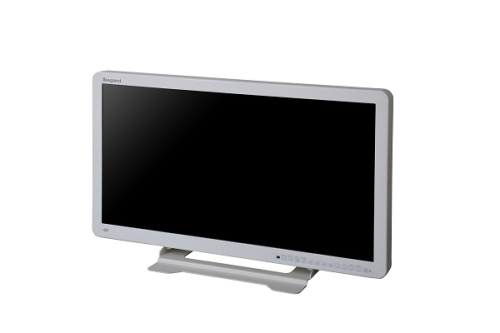

The MLW-3110U-3D is a 31-inch 4K 3D monitor with 12G-SDI & HDMI2.0. Inaddition to its native 4K resolution, 1500:1 high contrast LCD panel represent much more vivid picture that would support doctors for better visibility. Front control buttons employ Touch panel which makes it easier to keep clean. MLW-3110U-3D will set the new standard for high-end Medical video monitoring applications.

12G-SDI & HDMI 2.0 for UHD input

12G/3G-SDI / HDMI (HDCP2.2) / DVI-D (HDCP1.4) comes as standard input. 12G-SDI can extend more than 75m over single coaxial cable (5CFB or equivalent).

Native 4K LCD panel

Newly developed 10-bit IPSUHD panel employs LED back light. It can display 3840 x 2160 native 4K resolutionwith Contrast ratio 1500 : 1.

High performance display engine

Super resolution can upscale HD image to fit to the screen size. Besides H.I.S.E & D.I.C.E., a unique technology can adjust the view to enhance structure and color of the blood vessels and tissues.

Front touch panel

Flat surface control buttons provide ease of cleaning as well as operation comfort.

New VESA Tilt-stand (Option)

Newly designed VESA stand can set the monitor at the best viewing angle thanks to its wide adjustable range.

LCD Panel Size	31-inch
Backlight System	LED
Display Size	697.958(H)×368.064(V）mm
View Angle	178° (up&down / left&right)
Contrast Ratio	1500:1 (Typical)
Maximum Brightness	500cd/m2 (Typical)
Contrast Ratio	1500:1 (Typical)
Color Gradient	1,073,741,824
RGB/Component Input
Signal and Connector	R,G,B or Y,Pb,Pr, 1CH:HD-15 [D-Sub 15pin] (with loop through)
DVI Input
Signal and Connector	DVI-D (HDCP1.4)
SDI Input
Signal and Connector	2CH x 12G(3G/HD-SDI), 3CH x 3G(HD-SDI)
HDMI
Signal and Connector	HDMI2.0 (HDCP2.2)
Other Input
Signal and Connector	RS-232C Serial, RJ-45 Ethernet, USB
Safety Approval	ANSI/AAMI ES60601-1, CSA C22.2 No.60601-1,EN60601-1
EMC	FCC Class A, VCCI Class A, EN60601-1-2
Power Requirement	AC : 100-120Ｖ/200-240Ｖ
Power Consumption	180W or less
Ambient Temperature	+5°C ~ +35°C
StorageTemperature	-20°C ~ +60°C
Dimensions	W760 × H440 × D98mm (excluding protrusions)
Weight	approx. 12.5kg(excluding stand)
