26-inch Medical Grade 3D Full HD LCD-Monitor

MLW-2626C-3D

26-inch Medical Grade 3D Full HD LCD-Monitor

Discontinued Product

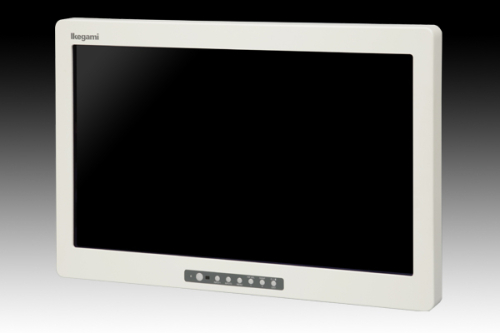

MLW-2626C-3D is a wide screen 26-inch 3D LCD monitor with the high resolution 1920(H) x 1080(V) Full HD LCD panel, wide angle of 178 degrees, Multi-Display function.
LED backlight panel supports high brightness & contrast. Furthermore HD-SDI 3G signal can be input for the true progressive imaging and more suitable to natural images. High performance with 3D HD quality is provided for medical specialists and experts.

Polarizing System 3D

By the polaroid film attached on LCD, images seen with right and left eyes are divided at each scanning line. This way is more comfortable to see 3D images by providing a flicker free. It also has cost-performance benefit compared conventional sutter-type 3D.

Applicable Divie

Applicable to diverse 3D Signals such as side by side, line by line, top&bottom and SIMAL(simultaneous). Two of input signals not only HD-SDI but also DVI-D are availablee. it is also possible to as 2D monitor.

Multi-Display Function (2D display)

Two types of input images can be displayed simultaneously with Side-by-Side and Picture-in-Picture display mode.

Flip Function (2D display)

Images can be flipped horizontally and vertically, allowing the correction of image inversion caused by the optics.

LED Backlight Panel

LED backlight panel helps saving power. It also supports Higher brightness & Higher contrast than conventional LCD monitors.

HD-SDI 3G signal input

The HD-SDI 3G signal can be input for the true progressive imaging and more suitable to natural images.

Panel Size	26-inch
Pixels	1920×1080
Display Size	576×324mm
Aspect Ratio	16:9
Color Gradient	8-bit×3(16.7M)
View Angle	178°/178°（Typical）

Input Signal
SDTV	Analog : VBS×1ch Y/C×1ch Digital :Multi-SDI×2ch（output×2ch）
HD	Digital : Multi-SDI（3G）×2ch（output×2）
PC	DVI : DVI-D×2ch（output×1ch） RGB Analog : D-SUB×1ch（output×1ch） Supported Resolution : VGA to WUXGA

General
Multi Display	Picture in Picture or Side by Side swap display is available
Invert Top and Bottom or Right and Left Function	Standard
Remote Terminal	Serial
Resolutions（TVL）	1000TV Line or more(at component input)
Maximum Brightness	250c/dm2
Contrast Ratio	1400:1（Typical）
Safety Approval	UL60601-1/CSA C22.2No601.1
EMI Approval	FCC Class A/VCCI Class A
Power Requirement	AC100V to AC120V, AC200V to AC240V
Power Consumption	100W Max.
Operation	Temperature : 5~35℃ Humidity : 30 to 80% (non condensing)
Storage Temperature	-20~60℃
Humidity	30 to 90% (non condensing)
Dimensions	W640×H418×D82mm (excluding stand and Protrusions)
Weight	8kg (excluding stand)
Accessories	AC Power Cable / Manual
Option	Desktop Stand TS-262
