Millimeter-Wave Band HD Video Transmission System

GL-60

Discontinued Product

The GL-60 is an HD-SDI transport system using the millimeter-wave 60GHz spectrum.

Features

Standard Antenna System
High-Gain Antenna System (Optional)

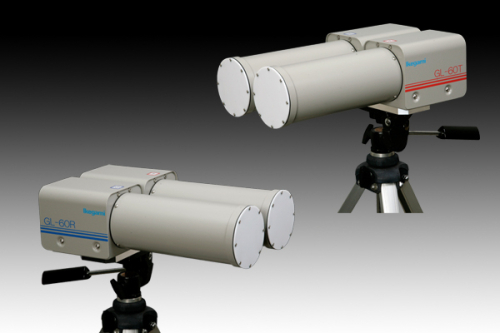

Transmitter-and-Receiver Pair System (Two-Way Link)

Utilizing license-free 60GHz spectrum, it can be used by anyone, anytime and anywhere.

No video compression is processed, and therefore it can offer zero delay in transport.

It transports uncompressed HD-SDI, and therefore it can offer zero degradation.

Dual-directional link application is possible forming transmitter-and-receiver pairs.

58.5 GHz or 61.5 GHz

Carrier frequency
Output power	10 mW or less
Occupied bandwidth	Within 2.5 GHz
Input/Output signals	HD-SDI (1.5Gbps, audio embedded)
Power requirement	DC +12V (Lithium ion camera battery can be used)
Transmission distance	100 m (in standard antenna system) 500 m (in optional high-gain antenna system) ※The above distance is a theoretical figure based on clear air condition.
