HLM-1760WR

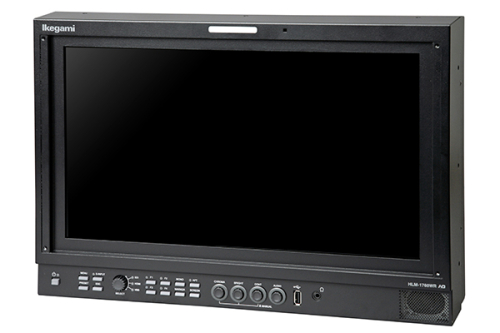

17-inch HDTV/SDTV Full HD Multi-format LCD Monitor

The HLM-1760WR has a 17-inch Full HD 1920 x 1080 Pixel 450 cd, 10-bit resolution LCD panel. This model offers very narrow front-to-back dimensions, light weight and low power consumption. Multi-format SDI, 3G-SDI, HDMI, Ethernet and VBS inputs are provided as standard.
By employing a Full 1920 x 1080 pixel LCD panel which has wide viewing angle, high brightness, high contrast, fast motion response, and high quality color reproduction, the HLM-960WR/HLM-1760WR achieves real pixel allocation without resizing. Its superb gradation characteristics also make it ideal for a wide range of broadcast applications, including use in monitor walls.

Main Features

Employs a new 17-inch 1920x1080 pixel Full HD LCD Panel using LED backlight
Multi-format 3G/HD/SD-SDI inputs, as well as HDMI input
Available 4 SDI inputs (by setting outputs into inputs)
4K 2SI (3G x1) input is available for 2K monitoring of a 4K signal
WFM and Vector displays, Audio level monitoring
USB connector for auto setup, mouse control & file storage
AC or DC Powering, optional battery bracket
Rack mountable
Available 2 video side-by-side display

High Dynamic Range (Factory-option)

The 60 series monitors support HDR (High Dynamic Range) EOTF tables of HLG1, HLG2, and S-Log3 as an option in addition to conventional gamma.

SDR

HDR

Display Panel
Type of Panel	LCD/LED Backlight
Resolution	1920 x 1080
Display Size	16.5 inches
Brightness	450 nits
Contrast Ratio	1500:1 (typ.)
Display Color	10 billion 700 million colors / 10-bit
Viewing Angle	178° (up & down, left & right) (typ.)
Rating & Performance
Power Requirement	AC: 100 to 120V AC / 200 to 240 V AC DC: 12 V DC
Power Consumption	AC: 40 W AC (max.) DC: 39 W AC / 3.3 A (max.)
Dimensions	W 428 x H 301 x D 80 mm (W 16.85 x H 11.85 x D 3.15 inches)
Rack-mountable Space	7U
Weight (Excluding Stand)	5.7 kg (12.57 lbs)
Supporting Format	SDTV: 480i / 59.94, 575i / 50 HDTV: ▪ 1035i / 59.94 / 60, 1080i / 50 / 59.94 / 60 ▪ 1080p / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 ▪ 1080psF / 23.98 / 24 / 29.97 / 30 ▪ 720p / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
Video
Input / Output	3G/HD/SD-SDI: 2-input / 2-output (loop through) or 4-input or 4-output VBS: 1-input / 1-output (loop through) HDMI: 1-input (HDMI 1.4b, HDCP-compliant)
Audio
Input	Analog Audio Input available as standard (Stereo mini jack)
Display	Embedded Audio Level Meter Display available as standard (8 ch)
Speaker	Rating Output: 350 mW Analog Audio Output: available as standard (Monaural) Embedded Digital Audio Output: available as standard (Monaural)
5.1 ch Surround Down-mix Output	Available as standard
Headphone Output	Available as standard
