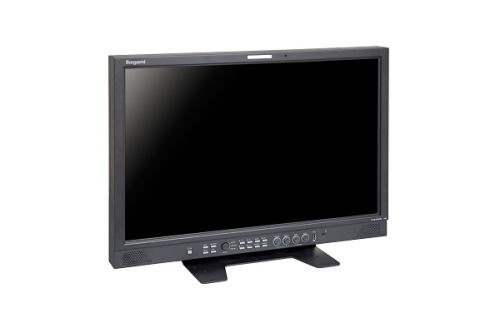

HLM-2460W
24-inch HDTV/SDTV Full HD Multi-format LCD Monitor〔Discontinued〕
The HLM-2460W has a 24-inch Full HD 1920 x 1200 Pixel 400 cd, 10-bit resolution LCD panel. This model offers very narrow front-to-back dimensions, light weight and low power consumption. Multi-format SDI, 3G-SDI, HDMI, Ethernet and VBS inputs are provided as standard.
By employing a Full 1920 x 1200 pixel LCD panel which has wide viewing angle, high brightness, high contrast, fast motion response, and high quality color reproduction, the HLM-960WR/HLM-1760WR/HLM-2460W achieve real pixel allocation without resizing. Its superb gradation characteristics also make it ideal for a wide range of broadcast applications, including use in monitor walls.
Main Features
- Employs 24-inch Full HD 1920 x 1200 Pixel 450 cd using LED backlight
- Multi‐format 3G/HD/SD‐SDI inputs, as well as HDMI input
- Available 4 SDI inputs (by setting outputs into inputs)
- 4K 2SI (3Gx1) input is available for 2K monitoring of a 4K signal
- WFM and Vector displays, Audio level monitoring
- USB connector for auto setup, mouse control & file storage
- Available 2 video side‐by‐side display
High Dynamic Range (Factory-option)
The 60 series monitors support HDR (High Dynamic Range) EOTF tables of HLG1, HLG2, and S-Log3 as an option in addition to conventional gamma.
SDR
HDR
| Display Panel | |
|---|---|
| Type of Panel | LCD/LED Backlight |
| Number of Pixel | 1920 x 1200 |
| Display Size | 24 inches |
| Brightness | 400 cd/m2 |
| Contrast Ratio | 1500:1 (typ.) |
| Display Color | 1.07 billion colors / 10‐bit |
| View Angle | 178° (up & down, left & right typical) |
| Rating & Performance | |
| Power Requirement | 100 to 120 V AC / 200 to 240 V AC |
| Power Consumption | 66 W (max.) |
| Dimensions | W 562 x H 398 x D 86 mm |
| Rack-mountable Space | 9U |
| Weight | 9.1 kg (monitor), 2.3 kg (monitor stand) |
| Supporting Format | SDTV: 480i / 59.94, 575i / 50 HDTV: ▪ 1080i / 50 / 59.94 / 60 ▪ 1080p / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 ▪ 1080psF / 23.98 / 24 / 29.97 / 30 ▪ 720p / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 |
| Video | |
| Input/Output | 3G/HD/SD-SDI 2-input / 2-output (loop through) or 4-input VBS 1-input / 1-output (loop through) HDMI (HDCP 1.2) 1 input |
| Audio | |
| Input | Analog Audio Input available as standard (Stereo mini jack) |
| Display | Embedded Audio Level Meter Display available as standard (8ch) |
| Speaker | Rating Output: 1W + 1W Analog Audio Output: available as standard (Stereo) Embedded Digital Audio Output: available as standard (Stereo) |
| 5.1ch Surround Down-mix Output | Available as standard |
| Headphone Output | Available as standard |
