PF-531A

Ultra Low-latency HD/SD Digital Microwave Link

The PF-531A is the latest high performance microwave link system from Ikegami based on the ARIB standard, employing OFDM & QAM modulation. The PF-531A is suitable for various applications, such as ENG and sports coverage, and point-to-point applications.
In addition, the RF head units achieve IPX level-4 for weatherproof and realize a semi-sealed structure. As a result, the PF-531A is engineered to operate in tropical weather conditions such as hot and high humidity environment or strong windy accompanied by rain showers and wind storms which is common in the Middle East region.

Stable and Extended-lifetime Operation with a High Level of Component Insulation

Up to 400m of Control Cable between the IDU and ODU

HD/SD-SDI, VBS, ASI, AES (4ch) and Analog Audio (4ch) interface

Various Antenna options

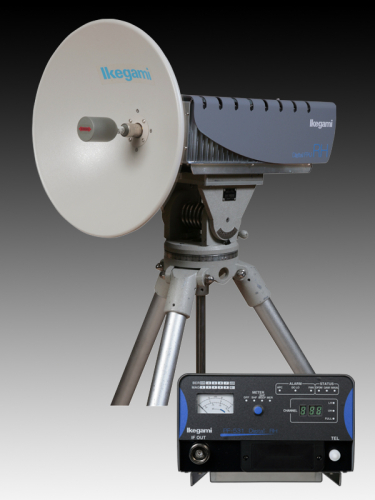

(Photo) PF531A ODU with Parabolic, Flat, Electrical Horn and Omni-directional Antennas

Built-in H.264 / MPEG-2 Dual Codec with 10-12ms @ H.264 Ultra Low-latency Mode in HD

HD/SD Color Bars with Character and Audio Tone Generators

Frequency 6.4-8.5GHz in selected bands
Preset Channel 4 channels standard. Optional 11 channels maximum
SHF Power Up to 1.0W in OFDM, 1.5W in single-QAM
Modulation OFDM : 64QAM / 32QAM / 16QAM / DQPSK / DPSK / DBPSK
QAM : 64QAM / 32QAM / 16QAM / QPSK
Signal Format HD: 1080i /50, 59.94, 720p / 50, 59.94Hz , SD: 575i / 50 (PAL), 480i / 59.94Hz (NTSC)
A/V Interface HD/SD-SDI, VBS, ASI, AES (4 channel) and Analog Audio (4 channel) interfaces
Power Requirement AC 230V ± 10 % (50/60Hz, Single Phase) *AC100-230V ± 10 % (Option)
Weight Transmitter : ODU 7kg, Control Unit: 6.5kg
Receiver : ODU 6kg, Control Unit: 6.5kg
