VFL701D

7-inch Digital I/F Full HD LCD Viewfinder（Limited Stock)

The VFL701D model provides a visual image which has high resolution
and is suitable for a Viewfinder which can be mounted on 4K cameras,
adopting a 7-inch Full-HD LCD.

General Specifications
Power Supply Voltage +12 V DC (10.5 to 18 V DC)
*Supplied from camera 1/F or DC IN connector
Power Consumption VFL701D: 14 W max
Ambient Temperature Operation: -10 to +45 °C
Storage: -20 to +60 °C
Ambient Humidity Operation: 20 to 85%
Storage: 5 to 85%
*Maximum wet-bulb temperature: 29 °C
*Non-condensation
Dimensions
(Excluding Protrusions)		 Main unit: W 235 x H 143.5 x D 76.5 mm
Main unit+ hood+ mount: W 302 x H 148 x D 308 mm
(D indicating the maximum size)
Weight Main unit: Approx. 1.5 kg
Main unit + studio hood + mounting bracket: Approx. 3.7 kg
Accessories Complete each set of:

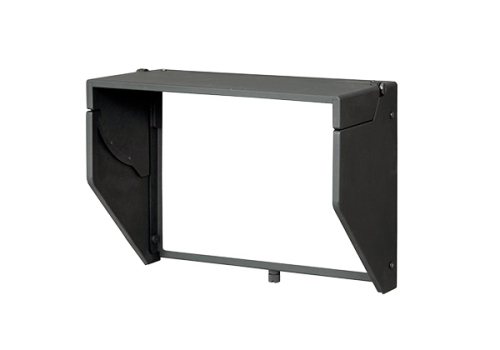

  • Studio hood (1)
  • VF cable (1)
  • Operation manual (1)
  • Camera number (1-9) plate (1)
Rated Performance
Camera Signal (Standard Support) a) Input terminal
Input: Camera 1/F 1 system
b) Input signal format (automatic recognition)
1080i/ 59.94, 50
1080p/ 29.97, 25, 24, 23.98
1080PsF/ 30, 25, 24, 23.98
720p/ 59.94, 50
c) Input signal LVDS
d) Transmission system Differential system
e) Transmission rate: 1.485 Gbps, 1.484/1.001 Gb/s
f) Quantifying bit number 10 bits
g) Input Impedance 100 ohm
SDI Signal (External Input) a) Input terminal
Input: BNC 1 system
b) Input signal format (automatic recognition)
3G-SDI: SMPTE425M-A/B: 1080p/60, 59.94, 50
HD-SDI : SMPTE292M: 1080i/60, 59.94, 50
720p/60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080psF/30, 29.97, 25, 24, 23.98
1080p/30, 29.97, 25, 24, 23.98
c) Input level
Rating: 800 mVp-p +/-10%
d) Transmission rate
3G-SDI: 2.970 Gbps
HD-SDI: 1.485Gbps
e) Quantifying bit number: 10 bits
f) Input impedance: 75 ohm
g) Transmission distance: 100 m or more (at 5 CFB, 2.970 Gbps)
LCD Panel
Number of Pixels H 1920 x V 1080 dots
Pixel Pitch W 0.027 x H 0.081 mm

Screen Size

 155.52 mm x 87.48 mm (Diagonal: 17.48 cm)
Screen Brightness 400 cd/m2
*The brightness on individual sets may differ, depending on the color temperature setting values
Structure a-TFT
Contrast Ratio 1000:1 (typ.)
Number of Display Colors 16.77 million colors (Each of RGB at 8 bits)
Support Products UHK-X700/750
UHK-X600/650
UHK-430/435
