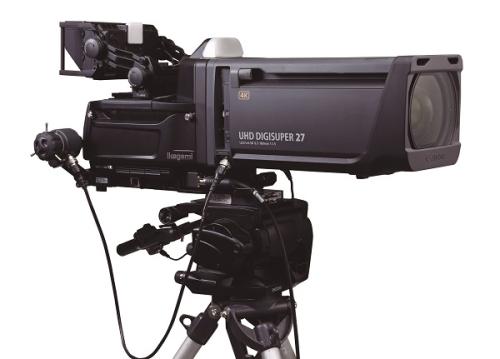

UHK-435

4K/HD Studio Camera System

Featuring native 4K 2/3-inch CMOS sensors, three chip optics, conventional BTA lens mount, and the world’s first(*) transmission of an uncompressed 4K signal between camera and CCU, the UHK-435 4K/HD Camera System makes its debut as the first member of Ikegami’s next generation UNICAM XE camera series, developed with “no compromises” for the advent of a fully fledged 4K age.
*Note: this is the world’s first 2/3-inch 3 CMOS sensor 4K camera with uncompressed transmission of 4:4:4 4K video (as of February 16, 2016). Source: our research.

Newly Developed 2/3-inch native 4K CMOS sensors give you Real 4K resolution

The UHK-435 utilizes three newly developed 2/3-inch 8 megapixel CMOS sensors, each capable of capturing native 4K 3840 x 2160 resolution images. It offers an excellent sensitivity of F10 (in 4K/60p), F11 (in 4K/50p) and a remarkable signal- to-noise ratio. Unlike single chip cameras or cameras using pixel-offset technology, three native 4K CMOS sensors and prism optics provide real 4K resolution, superior color reproduction and no color aliasing.

Next generation high speed video processor, AXII

Ikegami has developed a new processing engine, AXII, for our next generation HD, 4K and 8K format cameras. This ASIC can perform high speed processing of HD, 4K (4 x HD) and 8K (16 x HD) super high resolution video signals in various formats and frame rates. The UHK-435 utilizes these new processors that make it possible to deliver high quality, high reliability and low power consumption. The camera is also capable of 16-axis color correction and an improved focus assist function for both 4K and HD modes.

Equipped 2/3-inch BTA bayonet lens mount

The BTA lens mount enables the use of existing lenses. Optical characteristics such as depth-of-field will be nearly the same as 2/3-inch HD cameras. For demanding applications, such as live sports and events, 4K resolution contents can be produced just as easily as conventional HD programs.

Signal formats

The camera system supports as standard various video formats and frame rates, such as 3840 x 2160p, 1920 x 1080p, 1920 x 1080i and 1280 x 720p, for both 60 and 50Hz.

  [4K] 3820x2160 59.94p / 50p / 29.97p 25p / 24p / 23.98p
  [HD] 1920x1080 59.94p / 50p
  [HD] 1920x1080 59.94i / 50i / 29.97p / 25p / 24p / 23.98p
  [HD] 1280x 720  59.94p / 50p
In addition, segmented frame is supported in selected frame rates.

16-axis color correction

The real-time 16-axis color corrector achieves a perfect color match with the other cameras or whatever color you might think would be desirable. The UHK-435 divides the color spectrum into 16 sectors where the hue/saturation can be adjusted individually.

Wide Color Space

The performance of the newly developed optical system delivers high dynamic range and a wide color space, supporting the BT.2020 color space specification in the 4K mode, and the BT. 709 color space in both 4K and HD modes.

HDR (High Dynamic Range)

The gamma setting is selectable and can be customized to create a specifictone. The “HLG“ (Hybrid Log Gamma), which is in conformity to the international standard (ITU-R BT.2100), is pre-installed and enables more neutral image quality with high contrast for a wider dynamic range. This allows for more image information to be retained with greater headroom and color grading.

Ultra Wide-Bandwidth Fiber Transmission

The built-in 40Gbps optical transceiver enables transmission of full bandwidth 4K resolution video signals between the camera and the CCU. Signals include uncompressed RGB 4:4:4 video, 4 lines of return video, 2 lines of QTV video, 4channels of audio, Gigabit Ethernet trunk, etc. Due to the availability of uncompressed RGB signals at the CCU, super high quality signals for Chroma Key are created.

12G Output Module (Option)

12G-SDI 4K signal can be transmitted by only one coaxial cable from CCU.

  • Max. 8x 12G-SDI can be output from one module.
  • 4K QUAD LINK output and HD/3G SDI output switchable
  • 12G-SDI and QUAD LINK can be simultaneous output
    *During 12G-SDI & QUAD LINK simultaneous output, QUAD LINK format is 3G-SDI Level-A 2SI

Video

Specifications
Image Sensor Three 2/3-inch Native 4K CMOS sensors, 8M pixel
Sensitivity 4K: F10 / 59.94p, F11 / 50p
HD: F10 / 59.94i, F11 / 50i
Optical System 2/3-inch R,G,B Prism
Lens Mount BTA mount
Optical Filter ND    1:CLEAR  2: 1/4      3: 1/8      4: 1/16     5: 1/64
CC    A:3200K  B:4300K  C: 6300K  D: CROSS E: OPTION
S/N Ratio 62 dB at HD mode
Limiting Resolution 4K: 2000 TVL (typ.)
HD: 1000 TVL (typ.)
General
Input Voltage +11 to 16 V DC (XLR 4-pin x1)
Ambient Temperature Operation: -20 to +45°C (-4 to +113 °F)
Storage:- 20 to +60°C (-4 to +140 °F)
Ambient Humidity 30 % to 90 % *Non-condensation
Dimentions
(Excluding Protrusions)
W 315 x H 328.5 x D 398 mm
(W 12.4 x H 12.93 x D 15.67 inches)
Weight Approx. 17 kg (37.48 lbs)
Power Consumption 65 W or less

The CCU-430 is the camera control unit for the UHK-430 camera.
The CCU is connected to the camera using fiber cable to transmit video, audio and control signals, as well as, supplying the power to the camera when hybrid fiber/copper cable is used.
Since it works for both 4K and HD workflows, it supports smooth and easy migration from HD to 4K production.
The cable length between camera and CCU is up to 13,123ft (4km) with power from the CCU and up to 32,808ft (10km) using the fiber single mode which requires local power at the camera.

Feature

Multi-Video Interface

  • Switchable 4K or HD signal output
  • Built-in 4 x 3G-SDI standard 4K output (Switchable quad link square division /2 sample interleave division)
  • With option board, 4K, HD and HD cut-out signals from native 4K are available simultaneously
  • Compact (3U) and light weight
Rating/Performance
Input
SDI Return Video 3G-SDI: SMPTE 424/425 Level A/B
HD-SDI: SMPTE 292M 4ch
HD Q-TV (PROMPTER) -SDI: SMPTE 292M 2ch
Reference (Genlock) Tri-Sync SMPTE 274M / Black Burst Signal
or SMPTE 318M (10 FIELD ID)
Program Audio 3ch
Intercom 4-wire / Clear-Com / RTS 2ch (ENG / PROD) selectable
Tally Red / Green / Yellow 3ch
Output
3G/HD-SDI 3G-SDI:SMPTE 424/425 Level A/B
HD-SDI:SMPTE 292M 2ch 8output
4K (3G-SDI×4) Quad Link Square Division or 2 Sample Interleave division
3G-SDI:SMPTE 424/425 Level-A/B,
HD-SDI:SMPTE 292M QL 2ch 8output
Monitor HD-SDI: 2ch 2outputs
HD Trunk Video HD-SDI: 1ch 1outputs
Reference Tri-Sync SMPTE 274M 1ch 1output
Audio Analog 2ch XLR 3 pin: +4[dBu] / 0[dBu]
AES/EBU: SMPTE 276M 1ch
Tally Red / Green / Yellow
IF Connector
Optical fiber cable Cable:SMPTE 311M
Camera connector:SMPTE 304M
Gigabit Ethernet Trunk Line 8P8C (RJ45) / UTP Cat.5e 1000BASE-T (IEEE 802.3ab) 1Gbps(Theoretical value)
Remote Control 8 pin (x2)
Ethernet RJ45 (x1)
Remote(Mic Gain Remote) D-sub 15 pin
External I/F D-sub 15 pin
Communication 25 pin
Data Trunk channel #1 D-sub 9 pin RS-422 115k [baud]
Front Intercom XLR 4 pin male, XLR 5 pin female,
XLR 7 pin female, 1/4"phone-jack (option)
USB USB2.0 Type-A
General
Power Consumption T.B.A
Ambient Temperature Operation:0°C to +40°C / +32°F to +113°F
Storage:-20°C to +60°C / -4°F to +140°F
Relative Humidity 30% to 90% (Non-condensing)
Dimentions W 483 × H 133 × D 449 mm(excluding protrusions)
(W 19 x H 5.2 x D 17.7 inch)
Weight approx.19kg(41.9lb)
Power Consumption approx.250VA
